Belt conveyors consist of a continuous loop of material, typically made of rubber, fabric, or metal, that rotates around two or more pulleys. The conveyor belt is powered by a motor, which moves the belt, allowing it to transport materials horizontally. Conveyor belts are available in various widths, lengths, and configurations, making them adaptable to a wide range of applications. Belt conveyors are indispensable in the world of modern manufacturing, logistics, and material handling. Their adaptability, efficiency, and reliability have made them a go-to solution in various industries.
| Machine - Model | Belt Width x thickness | Belt Type | Power Required in (HP/KW) | Voltage (v) / Frequency ( Hz) |
|---|---|---|---|---|
| NN300FBC | 300 mm x 3mm | Flat Green Belt closed loop | 0.5/.37 Geared Motor | 415/50 |
| NN600FBC | 600 mm x 3mm | Flat Green Belt closed loop | 1/0.75 Geared Motor | 415/50 |
All the machineries can be made in stainless steel also.
All the machineries have different capacities.We reserve the rights to deviate from the above tables as improvements in designs are constantly being made.

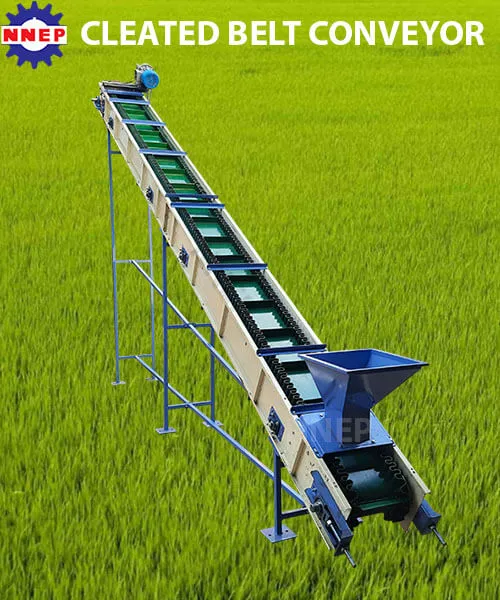

The capacity of the machine depends upon grain type, grain density and contamination. capacity is indicative, not binding.Cleated Belt conveyors consist of a continuous loop of material, typically made of rubber, fabric, or metal, that rotates around two or more pulleys. Cleats or raised edges are added to the belt to prevent materials from sliding or rolling off. The conveyor belt is powered by a motor, which moves the belt, allowing it to transport materials horizontally, vertically, or at an inclined angle.
| Machine - Model | Belt Width x thickness | Belt Type | Cleat length | Cleat Height | Power Required in (HP/KW) | Voltage (v) / Frequency ( Hz) |
|---|---|---|---|---|---|---|
| NN300CBC | 300 mm x 3mm | Cleated Green Belt closed loop | 250 mm | 50 mm | 0.5/.37 Geared Motor | 415/50 |
| NN600CBC | 600 mm x 3mm | Cleated Green Belt closed loop | 500 mm | 50 mm | 1/0.75 Geared Motor | 415/50 |
All the machineries can be made in stainless steel also.
All the machineries have different capacities.We reserve the rights to deviate from the above tables as improvements in designs are constantly being made.

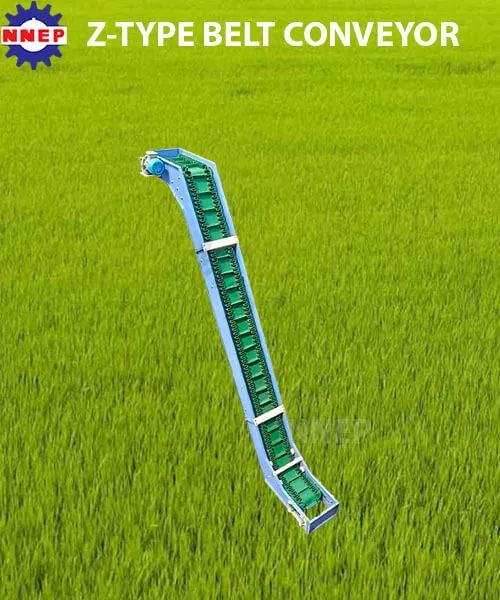

The capacity of the machine depends upon grain type, grain density and contamination. capacity is indicative, not binding.The Z-type belt conveyor is a specialized configuration of the traditional belt conveyor system. Its unique feature lies in its distinctive "Z" shape, which allows it to navigate vertical spaces with ease. These conveyors comprise a continuous belt with cleats or flights that grip the items being transported, preventing slippage during inclined or declined movement. The conveyor is powered by a motor, and the design of the Z-shape enables materials to be lifted or lowered while minimizing the horizontal space required.
| Machine - Model | Belt Width x thickness | Belt Type | Cleat length | Cleat Height | Power Required in (HP/KW) | Voltage (v) / Frequency ( Hz) |
|---|---|---|---|---|---|---|
| NN300IBC | 300 mm x 3mm | Cleated Green Belt closed loop | 150 mm | 50 mm | 0.5/.37 Geared Motor | 415/50 |
| NN600IBC | 600 mm x 3mm | Cleated Green Belt closed loop | 400 mm | 50 mm | 1/0.75 Geared Motor | 415/50 |
All the machineries can be made in stainless steel also.
All the machineries have different capacities.We reserve the rights to deviate from the above tables as improvements in designs are constantly being made.
The capacity of the machine depends upon grain type, grain density and contamination. capacity is indicative, not binding.
