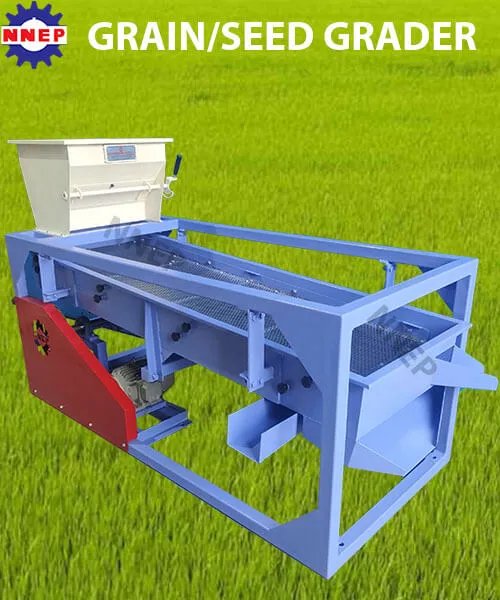

Grain/Seed Grader is used for grading all kinds of grains and seeds like rice, pulses (dhal), maize, pepper, paddy, soybean, sesame, mustard, millet etc. With the help of the gravitational force and moment of inertia the grains are made to flow on the vibrating screen. While the grains are moving on the vibrating screen, the grains get separated based on the hole sizes of the screens provided in the tray. The machine separates broken grains, sticks, straw, stones and sand from grains. The machine separates different grades of grains based on the number of screens provided in the machine. The capacities are 250 Kg per hour, 500 Kg per hour, 1000 kg per hour 2,000 kg per hour and 3,000 Kg per hour.4,000 Kg per hour.
| Machine - Model | Capacity in Kgs/hr | Dimensions in mm (LxWxH) | Weight in Kgs | Power Required in (HP/Kw) | Voltage(V)/ Frequency(Hz) |
|---|---|---|---|---|---|
| NN250G | 200 – 250 | 1000 x 665 x 590 | 46 | 0.5/.37 (1440 RPM) | 415/50 |
| NN500G | 300 – 500 | 1380 x 800 x 975 | 96 | 0.5/.37 (1440 RPM) | 415/50 |
| NN1000G | 700 – 1000 | 1950 x 887 x 1210 | 178 | 1.5/1.11 (1440 RPM) | 415/50 |
| NN2000G | 1500 – 2000 | 2250 x 1186 x 1315 | 215 | 2/1.5 (1440 RPM) | 415/50 |
| NN3000G | 2250 – 3000 | 2550 x 1186 x 1315 | 285 | 2/1.5 (1440 RPM) | 415/50 |
The Capacity will vary based on the impurities present in it.
All the machineries can be made in stainless steel also.
All the machineries have different capacities.We reserve the rights to deviate from the above tables as improvements in designs are constantly being made.

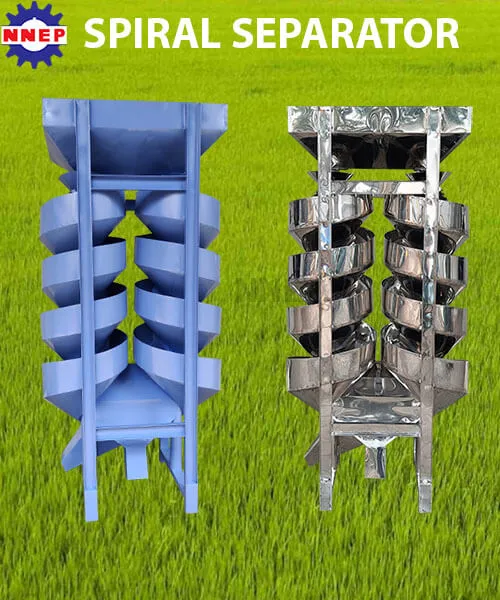

The capacity of the machine depends upon grain type, grain density and contamination. capacity is indicative, not binding.The Spiral separator uses the gravity and centrifugal force in the separation process. The seeds are fed into the top of the machine and as the seeds are rolling down the inner spirals, the round seeds will roll off to the outer spiral and the non-round and less weight materials will continue down on the inner spiral. There are two discharge chutes located at the bottom of the machine, one of the discharge points is the round seed and the other discharge point is the non-round and lesser weight materials.
| Machine - Model | Capacity in Kgs/hr | Dimensions in mm (LxWxH) | Weight in Kgs | Power Required in (HP/Kw) |
|---|---|---|---|---|
| GI Spiral Separator | 250 - 300 Kg | 2150 x 1061 x 574 | 48 | Nil |
| SS Spiral Separator | 250 - 300 Kg | 2150 x 1061 x 574 | 45 | Nil |
The Capacity will vary based on the impurities present in it.
All the machineries can be made in stainless steel also.
All the machineries have different capacities.We reserve the rights to deviate from the above tables as improvements in designs are constantly being made.
The capacity of the machine depends upon grain type, grain density and contamination. capacity is indicative, not binding.All kinds of flour and powders like turmeric powder, chilly powder, soap powder, etc., can be cleaned with this same machine by changing the grader's sieve according to the powder and flour. The capacities are 500 Kg per hour and 1000 kg per hour.
| Machine - Model | Capacity in Kgs/hr | Dimensions in mm (LxWxH) | Weight in Kgs | Power Required in (HP/Kw) | Voltage(V)/ Frequency(Hz) |
|---|---|---|---|---|---|
| NN1000PG | 400-600 | 1935 x 887 x 810 | 146 | 1.5/1.11 (1440 RPM) | 415/50 |
| NN3000PG | 900-1100 | 2550 x 1186 x 915 | 275 | 2/1.5 (1440 RPM) | 415/50 |
The Capacity will vary based on the impurities present in it.
All the machineries can be made in stainless steel also.
All the machineries have different capacities.We reserve the rights to deviate from the above tables as improvements in designs are constantly being made.

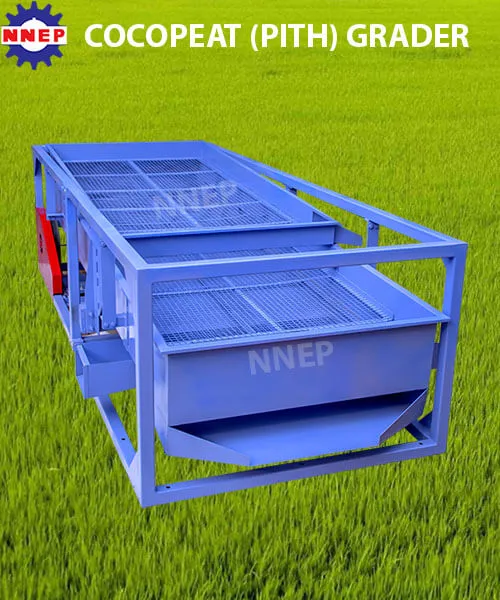

The capacity of the machine depends upon grain type, grain density and contamination. capacity is indicative, not binding.This machine separates coco peat, fines and fiber from the coco peat. With the help of gravitational force and moment of inertia the coco peats are made to flow on the vibrating screen. While the coco peat is moving on the vibrating screen, the coco peat gets separated based on the hole sizes of the screens provided in the trough. This machine separates different grades of coco peat based on the number of screens provided in the machine.
| Machine - Model | Capacity in Kgs/hr | Dimensions in mm (LxWxH) | Weight in Kgs | Power Required in (HP/Kw) | Voltage(V)/ Frequency(Hz) |
|---|---|---|---|---|---|
| NN 3000 Coir Grader – 2OTSO | 1000 - 1500 | 3775x1588x915 | 440 | 3/2.25 (960 rpm) | 415/50 |
| NN 3000 Coir Grader – 3OTSO | 1000 - 1500 | 3775x1701x1016 | 500 | 3/2.25 (960 rpm) | 415/50 |
| NN 3000 Coir Grader – 4OTSO | 1000 - 1500 | 3775x1701x1091 | 550 | 3/2.25 (960 rpm) | 415/50 |
The Capacity will vary based on the impurities present in it.
All the machineries can be made in stainless steel also.
All the machineries have different capacities.We reserve the rights to deviate from the above tables as improvements in designs are constantly being made.
The capacity of the machine depends upon grain type, grain density and contamination. capacity is indicative, not binding.Grain/seed classifier machine is used to classify grain products, clean the paddy and rice or even separate impurities from grains and seeds. It also can be used to clean and grade pulses. The Grain classifier can be used for many different grains by adjusting its stroke, angle of throw, and screen inclination.
| Machine - Model | Capacity in Kgs/hr | Dimensions in mm (LxWxH) | Weight in Kgs | Power Required in (HP/Kw) | Voltage(V)/ Frequency(Hz) |
|---|---|---|---|---|---|
| NN3000GCL | 2500-3500 | 2915x1515x1694 | 858 | 2/1.5 | 415/50 |
All the machineries can be made in stainless steel also.
All the machineries have different capacities.We reserve the rights to deviate from the above tables as improvements in designs are constantly being made.
The capacity of the machine depends upon grain type, grain density and contamination. capacity is indicative, not binding.
